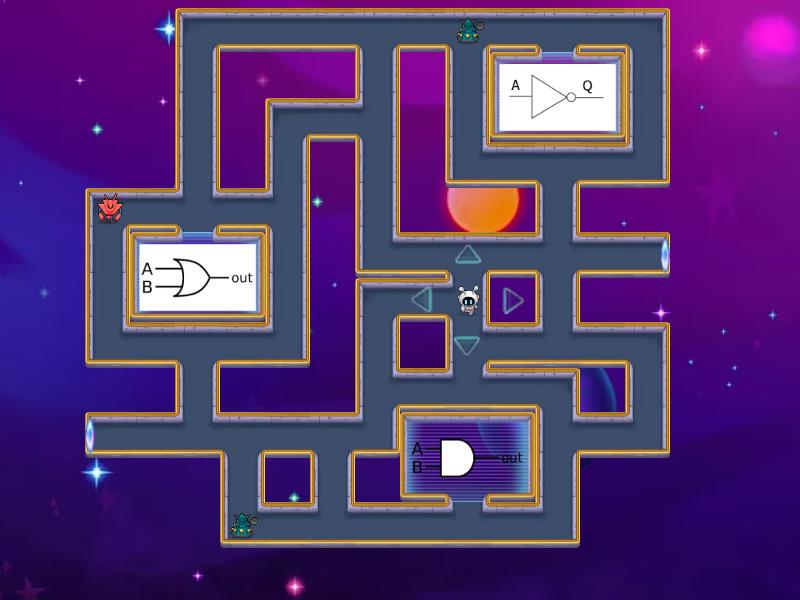

1) Which of these is an AND gate: a) b) c) 2) Which of these is a NOT gate: a) b) c) 3) Which of these is an OR gate: a) b) c) 4) Which gate has only 1 input: a) AND b) OR c) NOT 5) Which gate belongs to this truth table in the image: a) AND b) NOT c) OR d) XOR 6) Which gate belongs to this truth table in the image: a) AND b) NOT c) OR d) NOR 7) Which gate belongs to this truth table in the image: a) AND b) NOT c) OR d) NOR 8) What are the two gates in this image, put them in the correct order a) AND , NOT b) AND, OR c) OR, AND d) OR, NOT 9) Binary is also called? a) Base 4 b) Base 10 c) Base 2 d) Base 16 10) Decimal is also called? a) Base 2 b) Base 8 c) Base 10 d) Base 16

Binary and Logic Gates
