1) Which gate in the picture ? a) AND b) OR c) NOT 2) Which gate is in the picture? a) AND b) OR c) NOT 3) Which gate in the picture is in the imag a) A b) B c) C 4) What is the output of an OR gate if the inputs are 1 and 0? a) 1 b) 2 c) OFF d) 0 5) What is the output of an AND gate if the inputs are 1 and 0? a) 0 b) 1 c) ON d) 2 6) What is the output of a NOT gate if the inputs is 0? a) 0 b) 1 c) OFF d) 2 7) A NOT gate has… a) Two inputs and one output b) One input and two outputs c) One input and one output d) Two inputs and two outputs 8) An OR gate has a) Two inputs and one output b) One input and two outputs c) One input and one output d) Two inputs and two outputs 9) The output of a ________ gate is only 1 when both inputs are 1. a) AND b) OR c) NOT d) NEITHER
0%
KS3 Logic Gates
共用
共用
共用

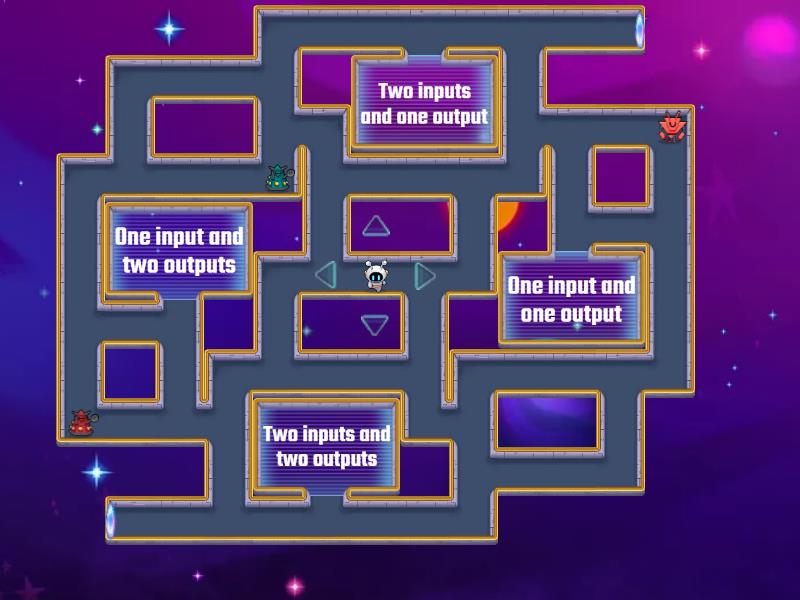

由
