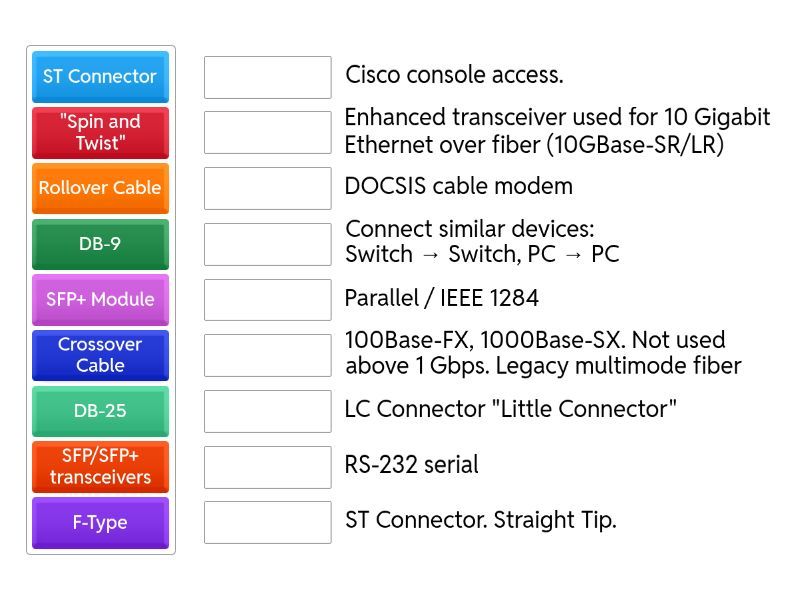

RJ-45 - Cat5/6/6a (Ethernet over Copper) , RJ-11 - Telephone / DSL, DB-9 - RS-232 serial, DB-25 - Parallel / IEEE 1284, BNC - 10Base2 (Coax Ethernet), F-Type - DOCSIS cable modem, LC Connector - 1000Base-SX/LX, 10GBase-SR, 10GBase-LR, SC Connector - 100Base-FX, 1000Base-SX/LX 10GBase-SR, Rollover Cable - Cisco console access. , SFP Module - Transceiver used for Gigabit Ethernet over fiber (1000Base-SX/LX), SFP+ Module - Enhanced transceiver used for 10 Gigabit Ethernet over fiber (10GBase-SR/LR), SFP - Small form-factor pluggable, SFP/SFP+ transceivers - LC Connector "Little Connector", Older fiber patch panels - SC Connector "Square Connector" , ST Connector - 100Base-FX, 1000Base-SX. Not used above 1 Gbps. Legacy multimode fiber, "Spin and Twist" - ST Connector. Straight Tip. , Crossover Cable - Connect similar devices: Switch → Switch, PC → PC, Straight Through Cable - Connect different devices: PC → Switch, PC → Router,

Network+ Connectors and Their Protocols
