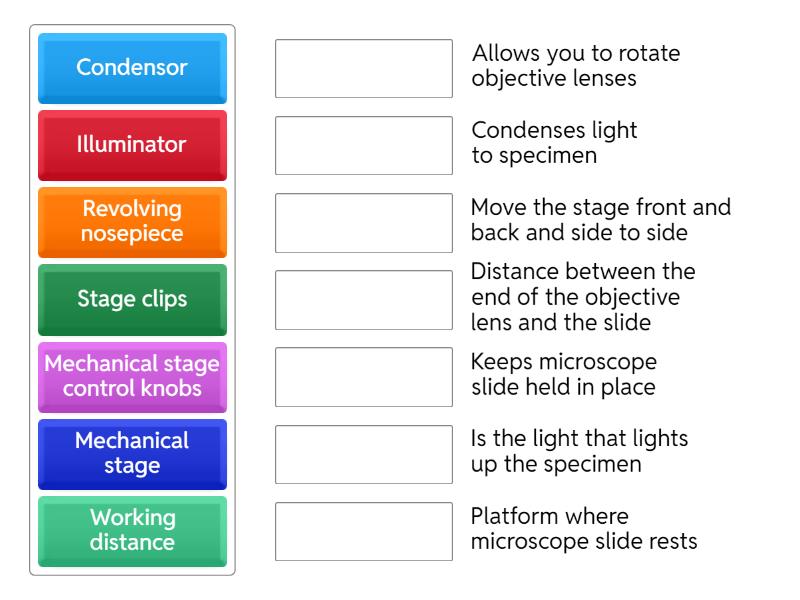

Mechanical stage, Platform where microscope slide rests, Mechanical stage control knobs, Move the stage front and back and side to side, Illuminator, Is the light that lights up the specimen , Condensor, Condenses light to specimen, Ocular Lens, Magnification of 10x, Coarse adjustment knob, Moves stage up and down faster and farther, Fine adjustment knob, Moves stage up and down slower , Field of view, The diameter of the circle of view you can see, Working distance, Distance between the end of the objective lens and the slide, Depth of focus, When you can see top, bottom, and intermediate layers of a specimen, Revolving nosepiece, Allows you to rotate objective lenses, Stage clips, Keeps microscope slide held in place , Iris diapragm , Controls how much light hits the specimen.
0%
Microscope Functions
