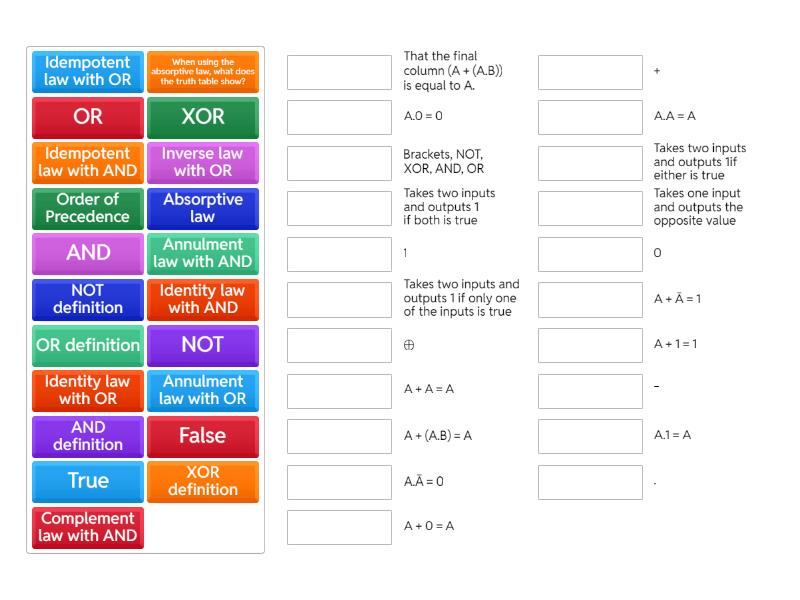

True - 1, False - 0, OR - +, AND - ., NOT - ‾, XOR - ⊕, OR definition - Takes two inputs and outputs 1if either is true, AND definition - Takes two inputs and outputs 1 if both is true, NOT definition - Takes one input and outputs the opposite value, XOR definition - Takes two inputs and outputs 1 if only one of the inputs is true, Order of Precedence - Brackets, NOT, XOR, AND, OR, Identity law with OR - A + 0 = A, Annulment law with OR - A + 1 = 1, Idempotent law with OR - A + A = A, Inverse law with OR - A + Ā = 1, Identity law with AND - A.1 = A, Annulment law with AND - A.0 = 0, Idempotent law with AND - A.A = A, Complement law with AND - A.Ā = 0, Absorptive law - A + (A.B) = A, When using the absorptive law, what does the truth table show? - That the final column (A + (A.B)) is equal to A.,
0%
Computer Science Boolean Algebra Rules
